YZPHF20-B1-CND-S300-A-G1

Telescopic Balance Valve

Mainly mounted in construction machinery telescopic cylinder with a plug-in structure. Users can insert it into the valve hole at the appropriate position of the hydraulic cylinder according to their needs. It has good locking performance and excellent function of controlling the smooth extension and contraction of the hydraulic cylinder. 1. Its pilot-operated opening mechanism allows for gentle control, thus preventing hydraulic shock. 2. The valve's long control stroke provides high resolution. 3. Optimizing the throttle groove of the balancing valve core allows for customized flow control. 4. This balancing valve utilizes a reverse-acting design, resulting in excellent locking performance.

Product Inquiry

Product Video

Parameters

Maximum working pressure

350bar

Maximum flow rate

300L/min

Opening pressure

20-70bar

Working oil temperature

-20℃~+90℃

Working fluid

mineral oil (HL, HLP)? according to DIN51 524 standard

Fluid viscosity range

10~380mm2/s

The max allowable pollution degree of oil

level 9 according to NAS1638

Recommended filter filtration precision

minimum β10≥75

If you have lower temperature requirements, please contact YUZHOU engineer;

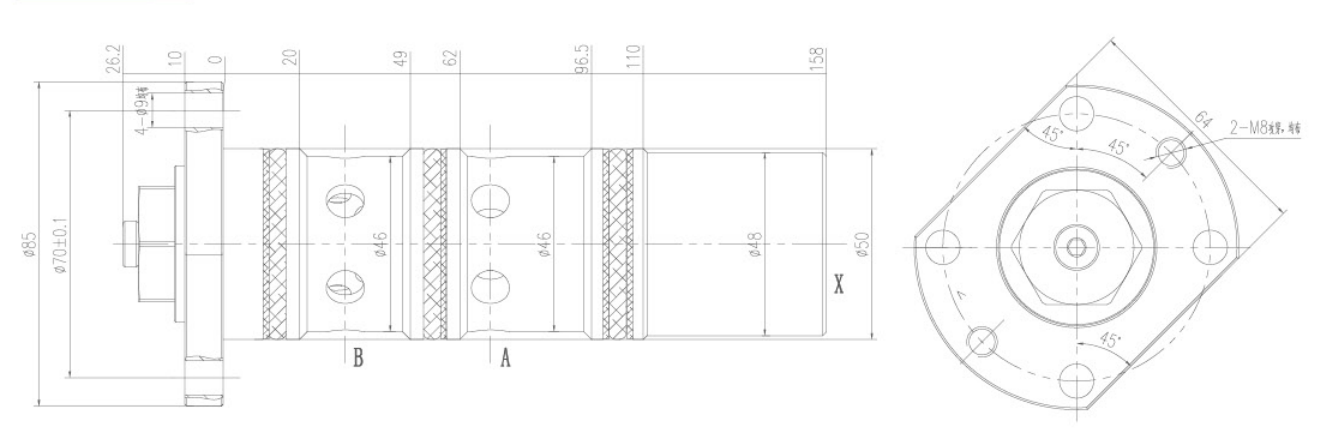

Size Graphics
